Aligner Block Bearing Change

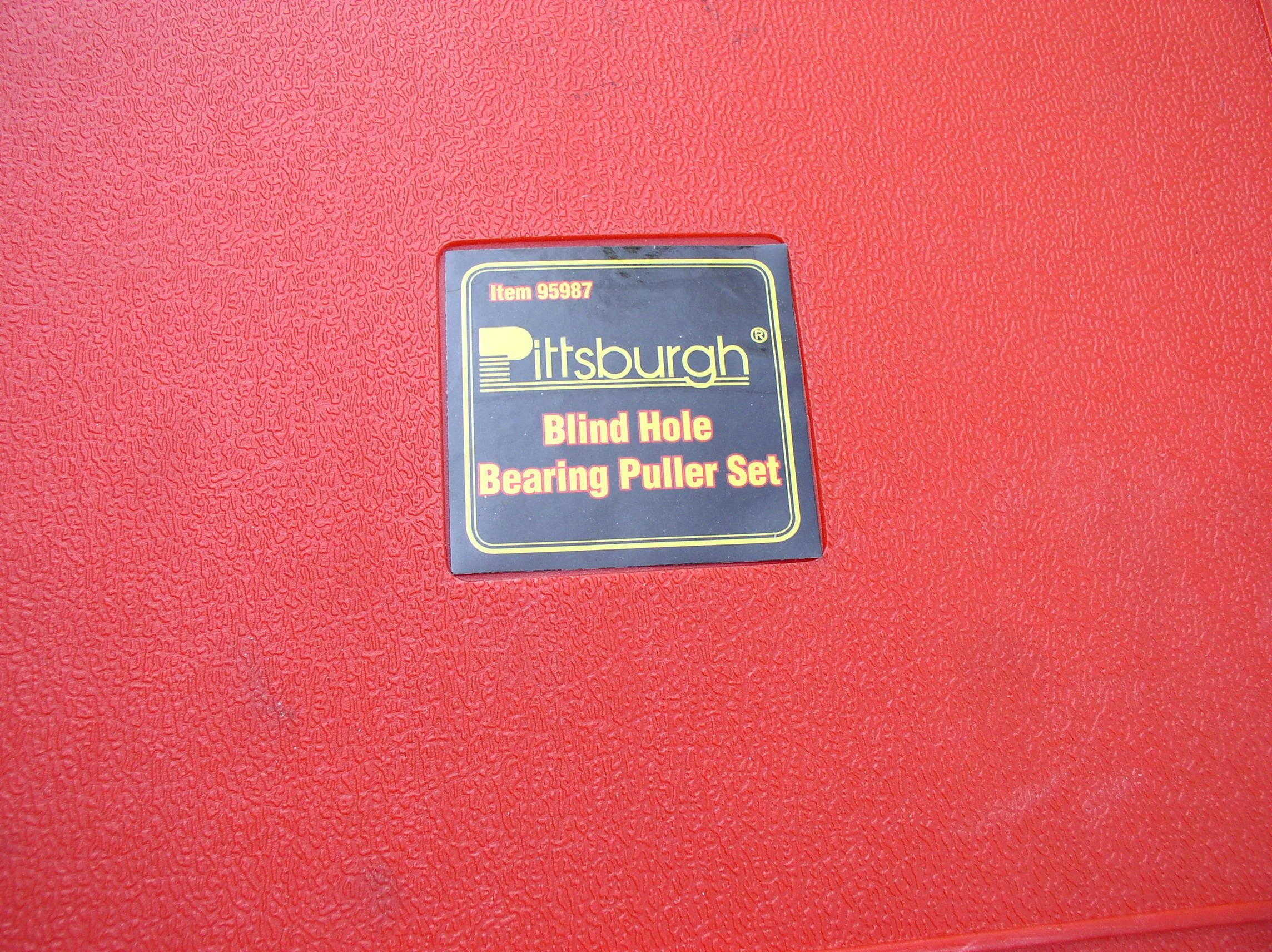

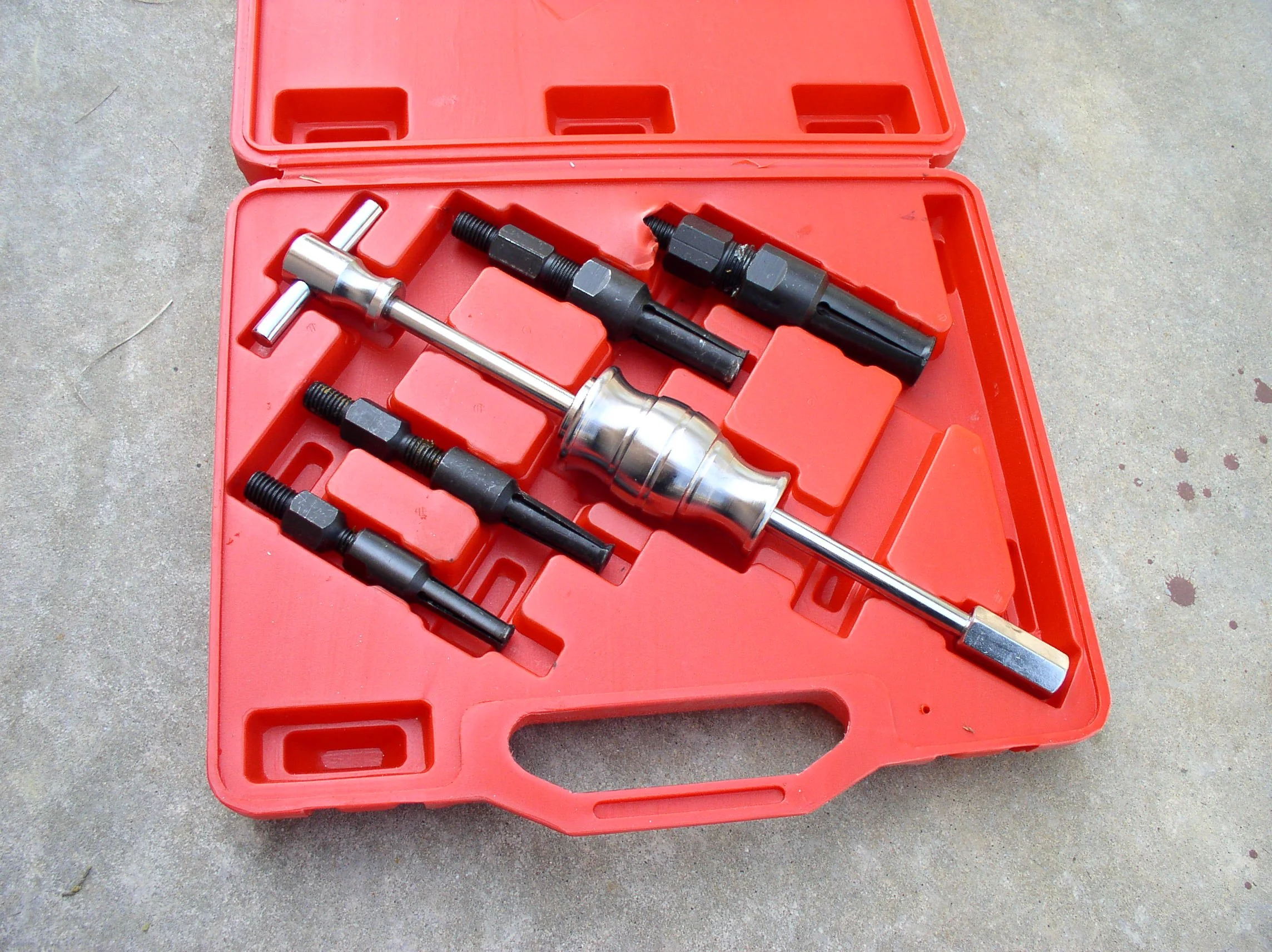

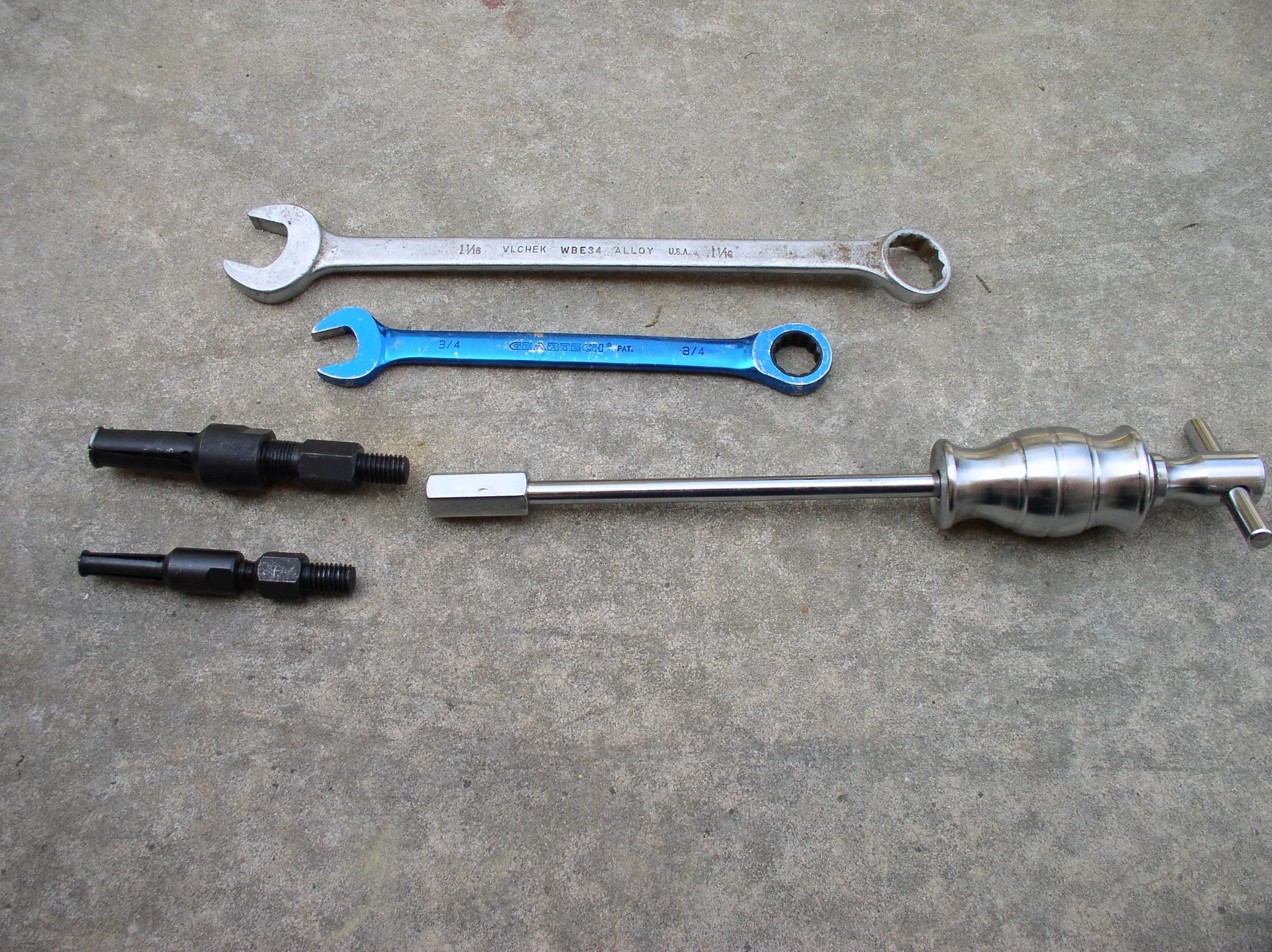

Get the tools required for the job

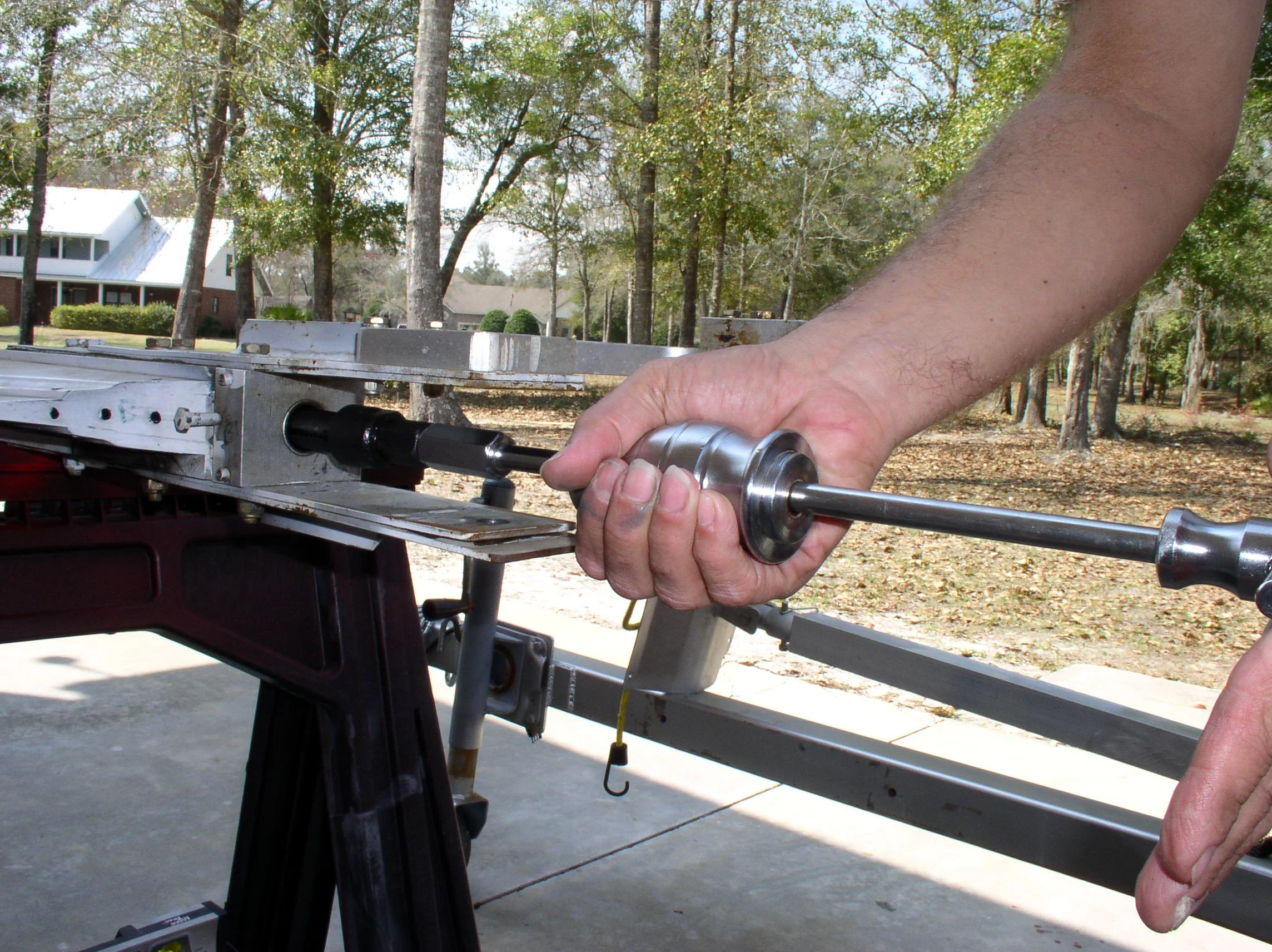

Install small bearing puller mandrel and slide hammer briskly to remove inner part of bearing

Clean bearing rollers debris

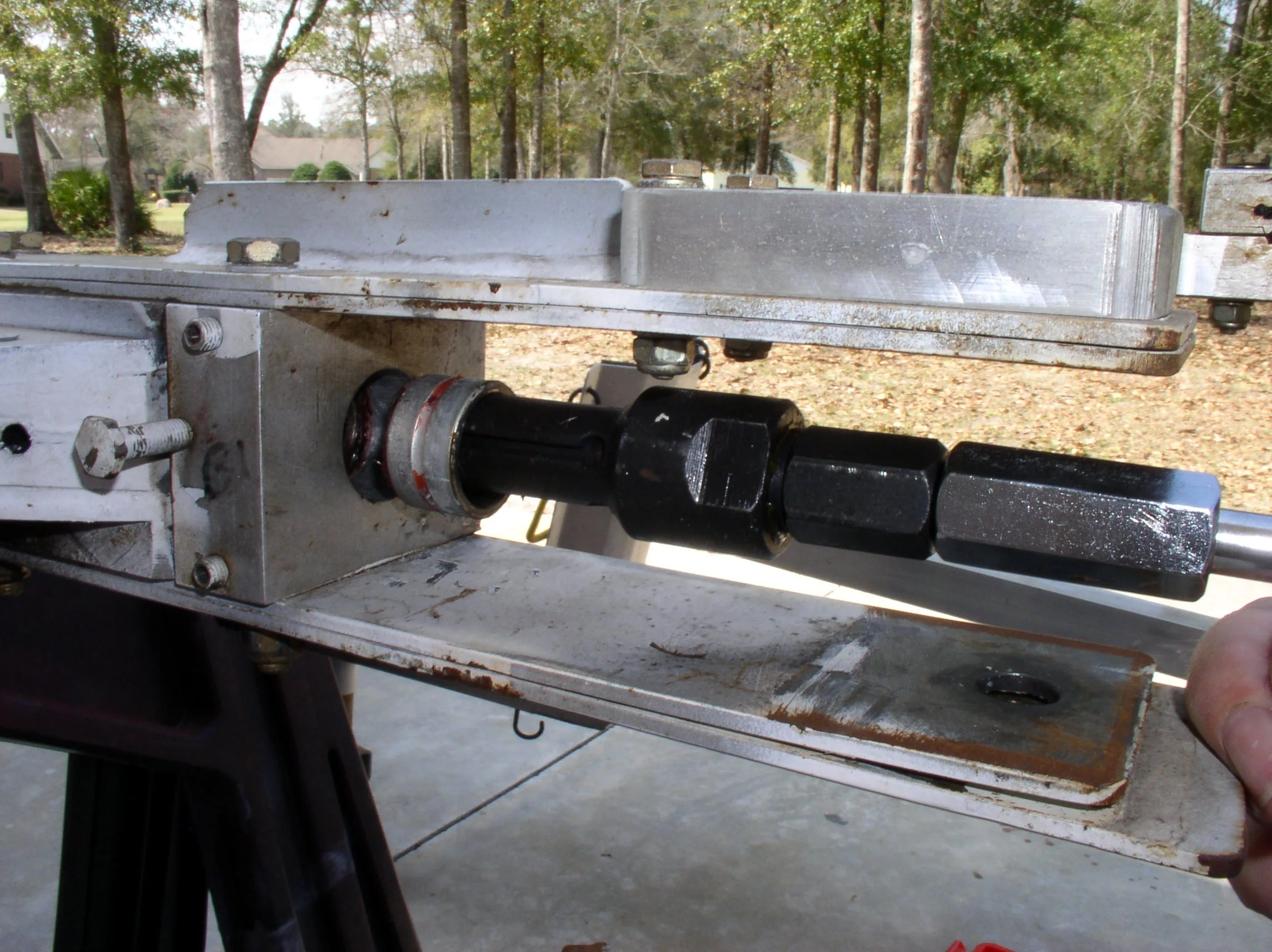

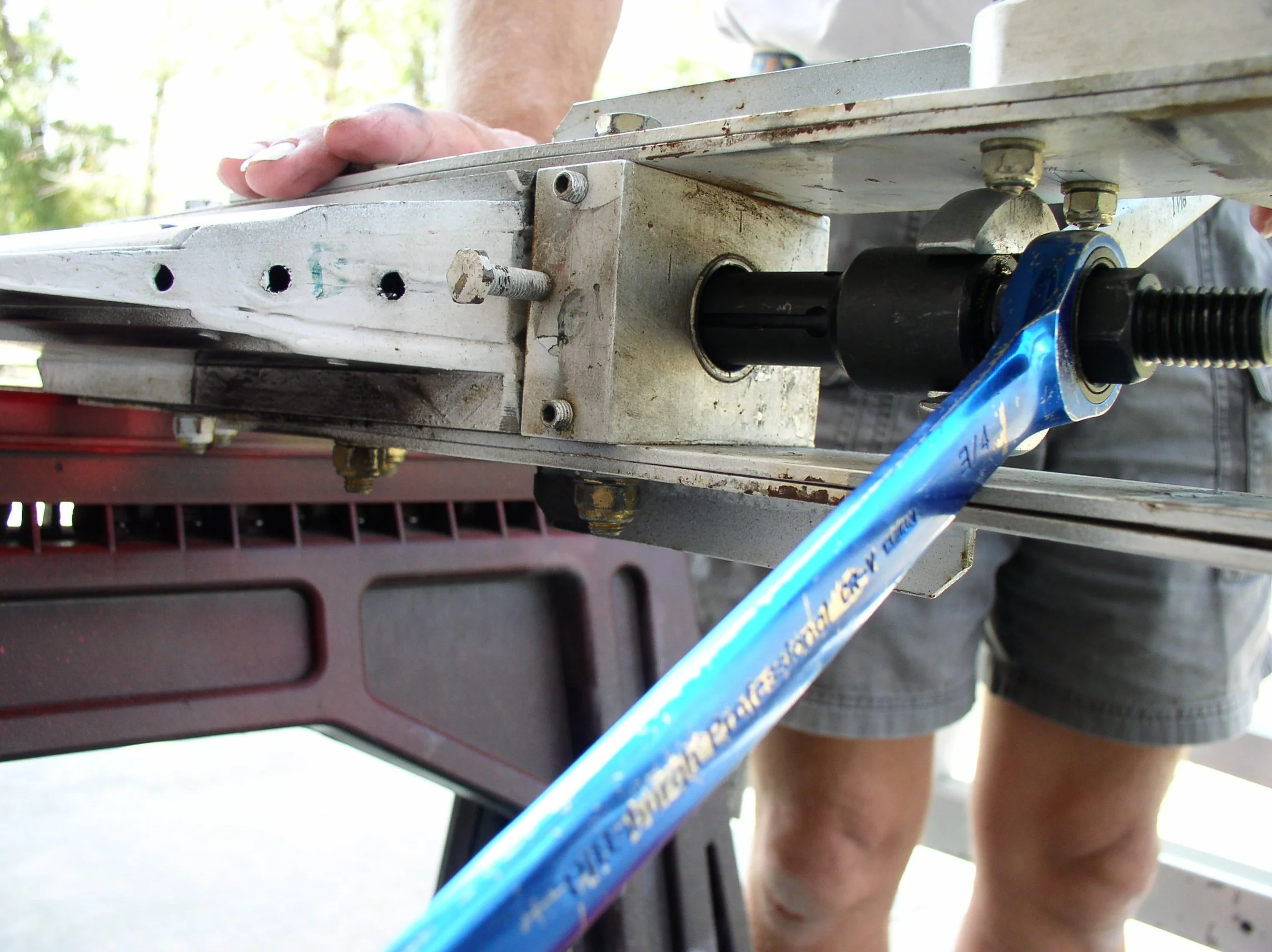

Install large puller mandrel using 3/4” wrench

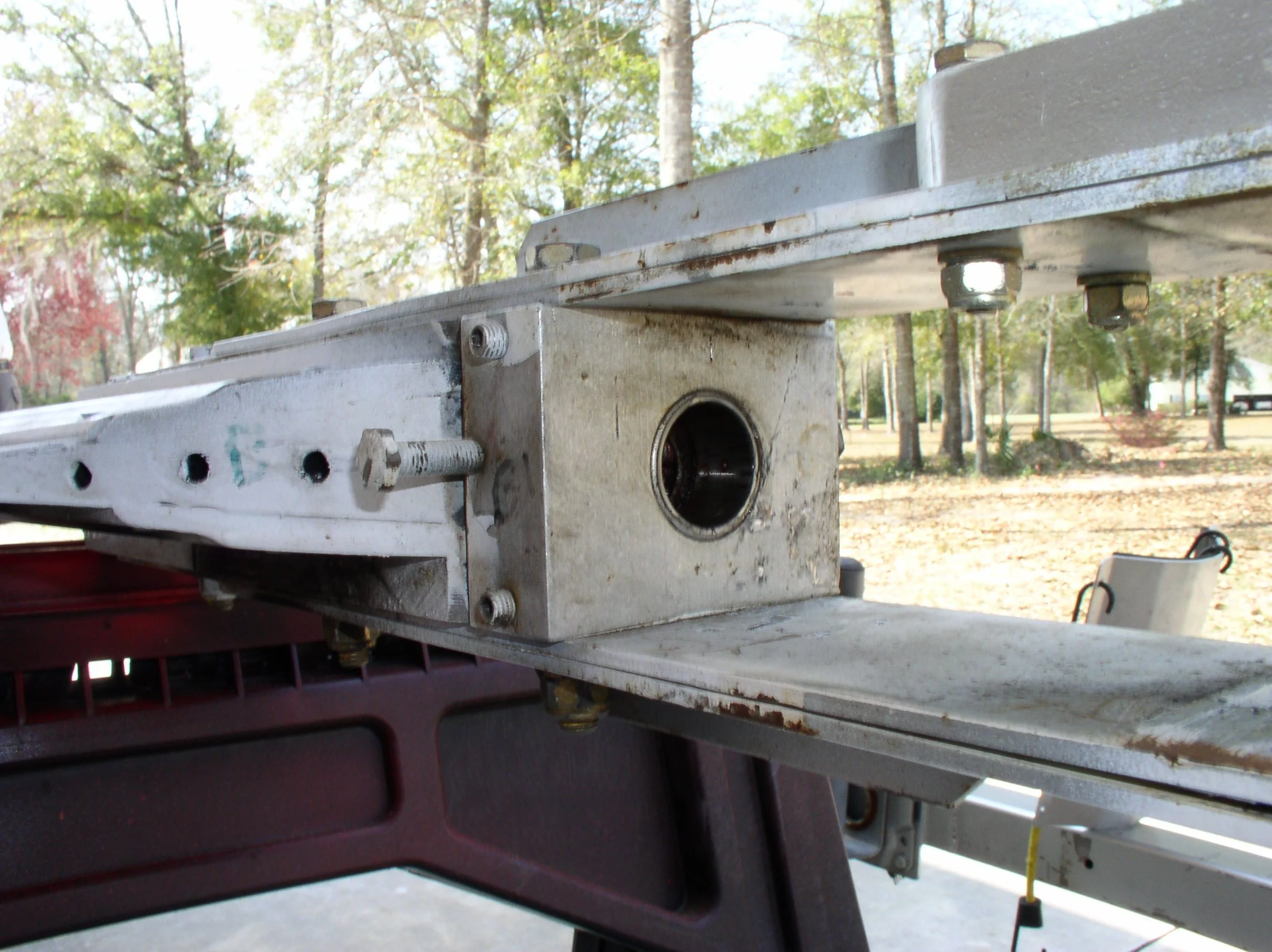

Remove remaining bearing race

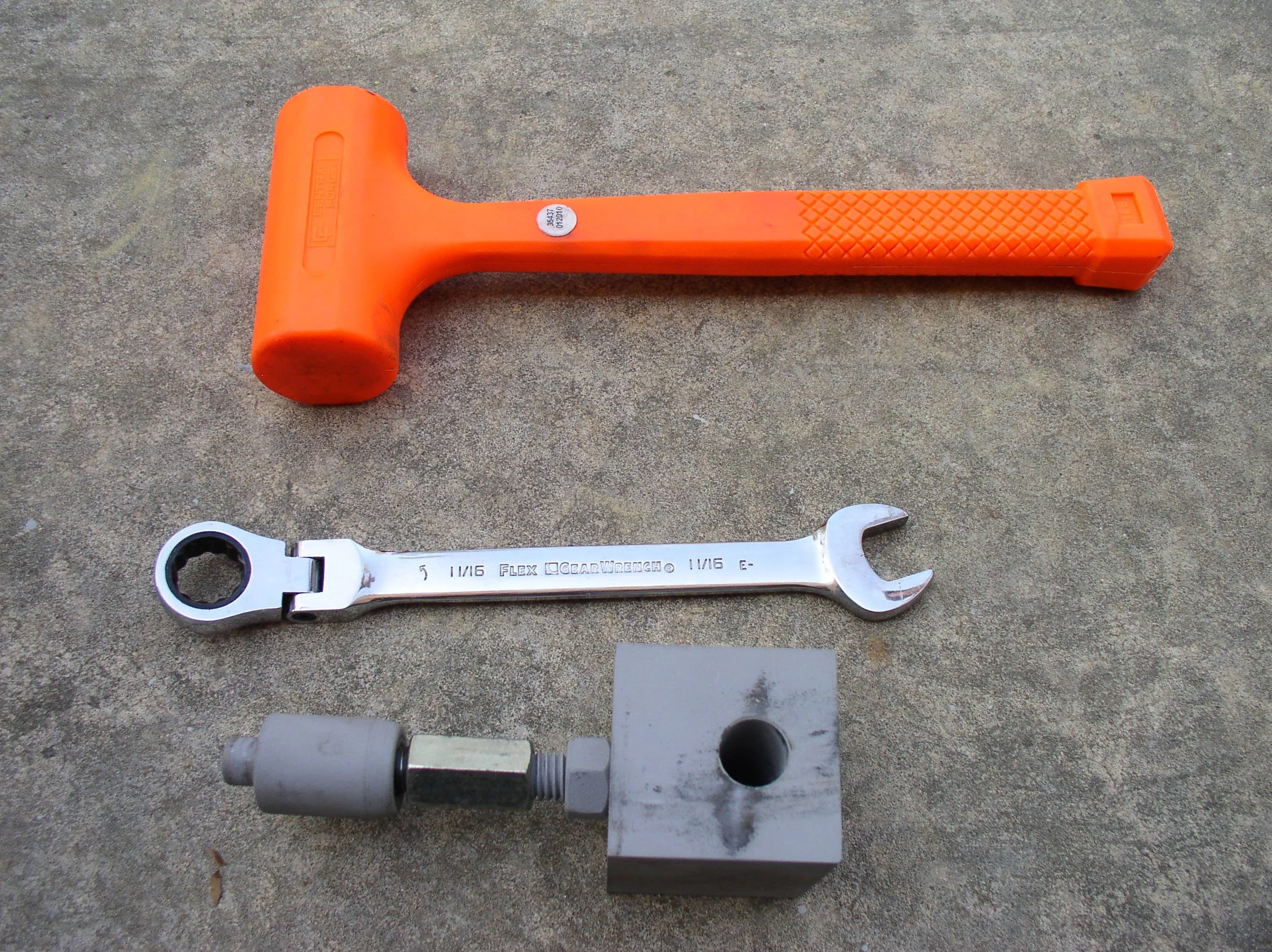

Install block for bearing press using main blade 9/16” bolt

Ensure that bearing press is square with new bearing

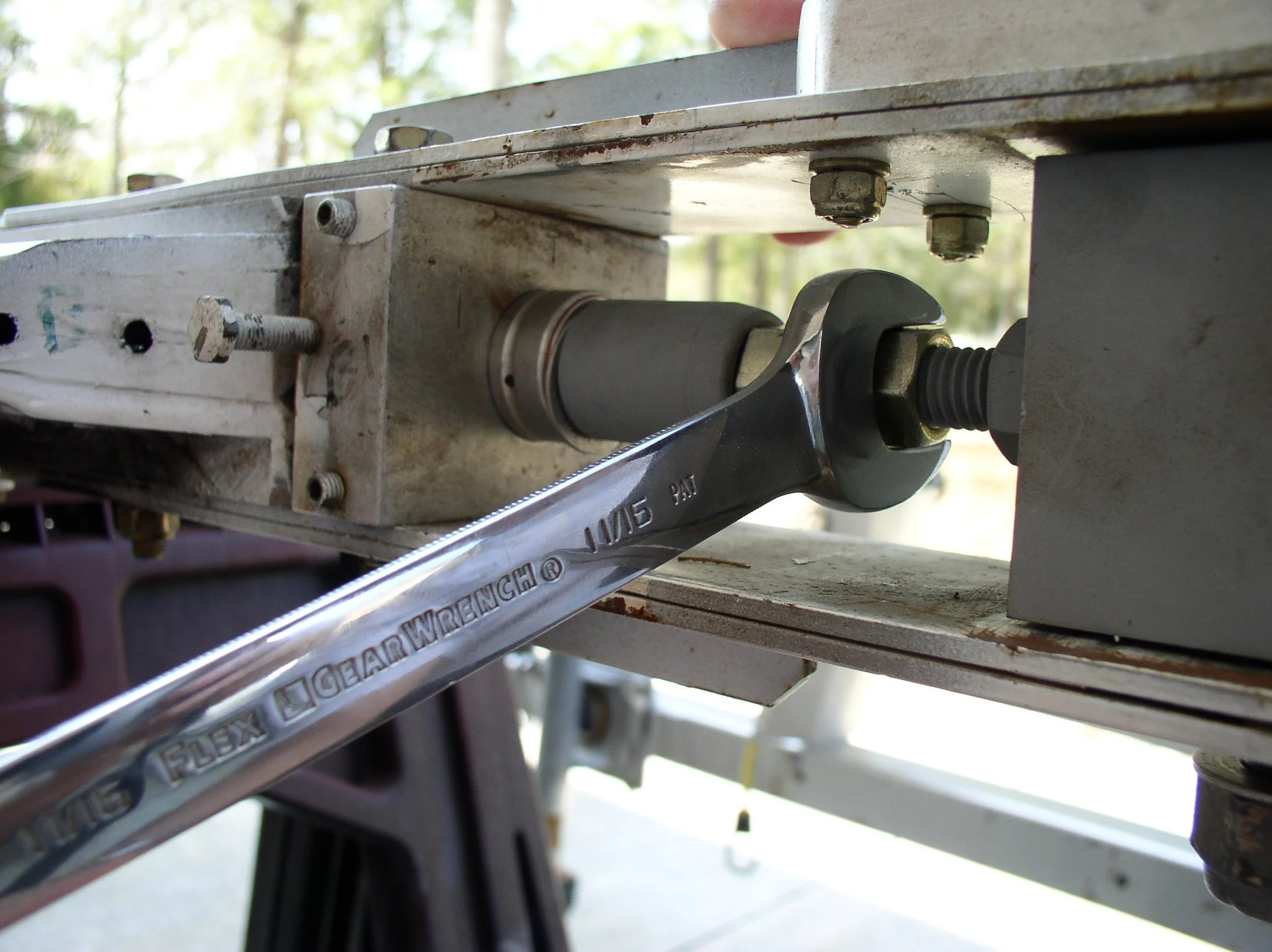

Use a .050” spacer to prevent the bearing from going flush to the aligner block Use a 11/16” wrench to rotate Acme threaded rod to press in bearing.

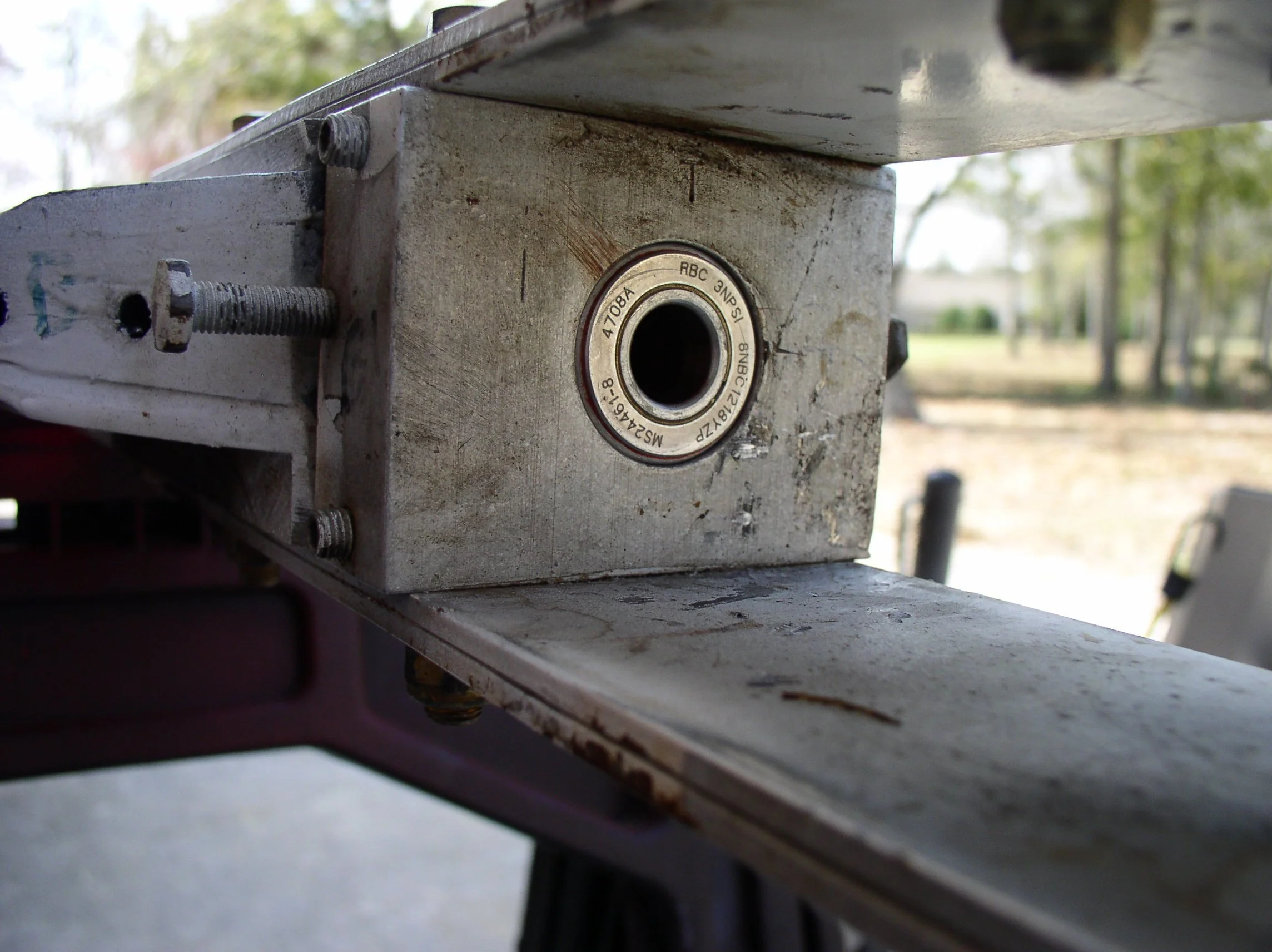

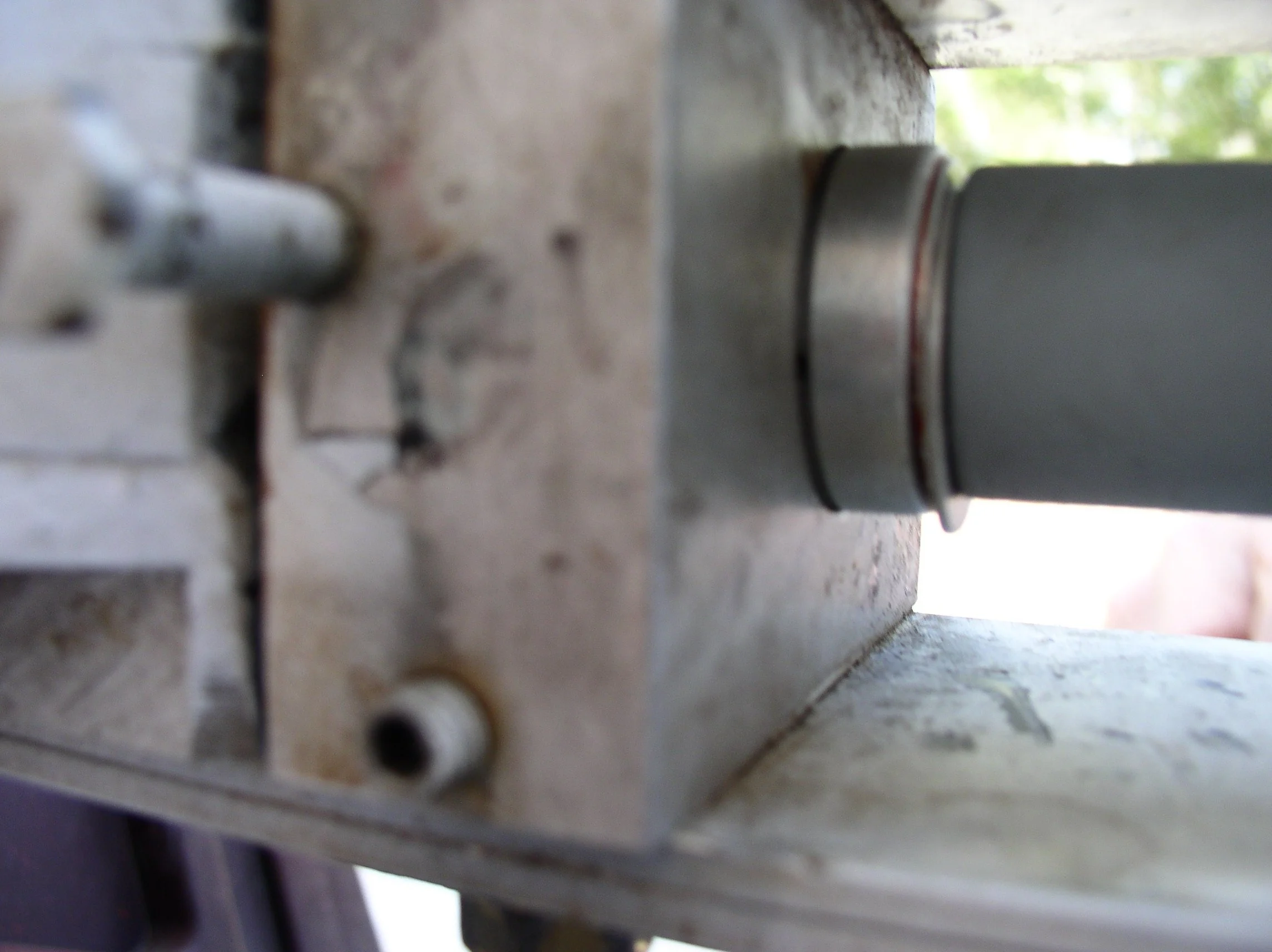

When finished the the bearing should protrude .050” from block face. Re tooling and lubricate bearing with appropriate red wheel bearing grease.
